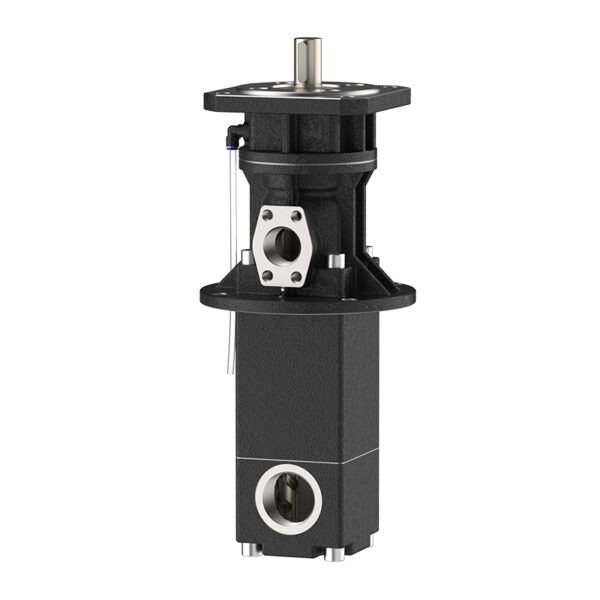

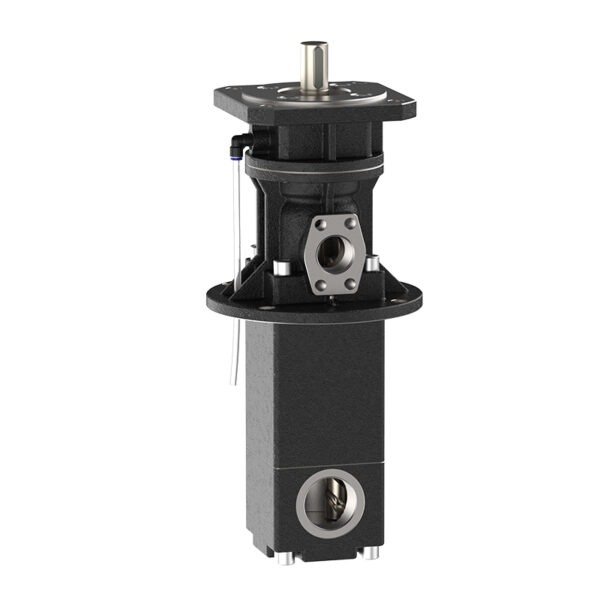

A3MT Series High Pressure Coolant Pumps

Technical Parameters

Product Application

A3MT series three screw pump is for metal processing machine tools to provide coolant (coolants, emulsions, oils，aqueous solutions), for high pressure applications, is a machine tool processing professional screw pump. The pressure of A3MT three-screw pump can reach 150bar, flow rate 1000L/min, for the machining work piece and tool precise washing, cooling, lubrication, chip breaking and chip removal, extend the tool service time, improve the precision, quality and efficiency of machined parts. It is an important product for precision machining of machine tools by manufacturers in various industries such as auto parts, aerospace and medical equipment.

Product Advantages

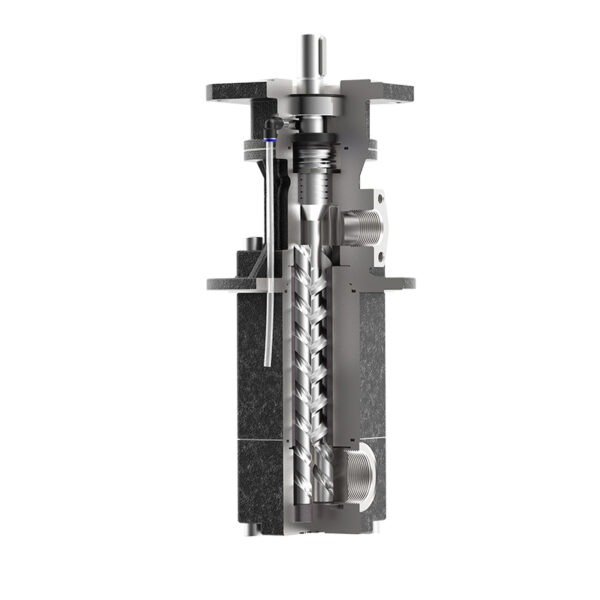

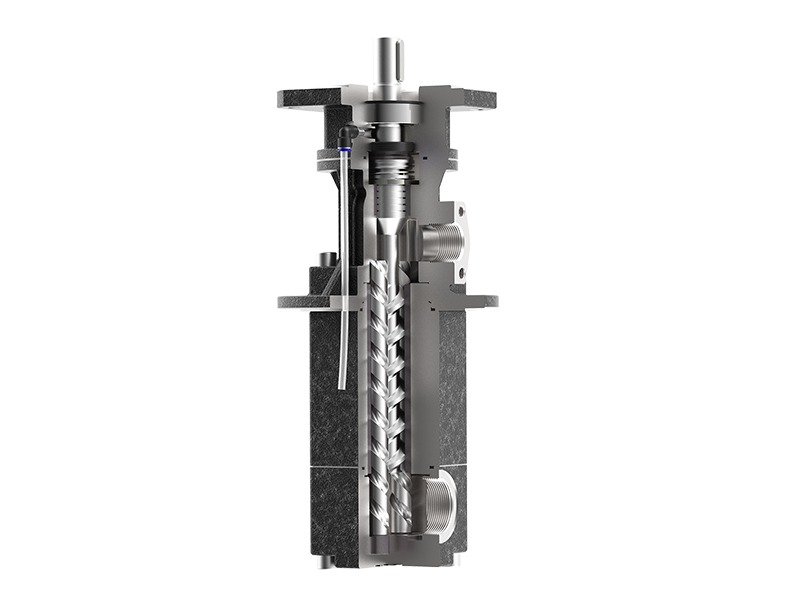

1.A3MT screw pump changes the traditional high pressure oil balancing technology, the use of active screw and driven screw axial force low pressure area mechanical balancing device, so that the screw force balance uniform and stable, screw does not deform, stable and reliable operation, low noise no pulsation

2.Labyrinth seal design, wear-resistant piston sleeve structure, can effectively reduce the pressure of the seal chamber, reduce the pressure to reach the mechanical seal, to ensure that the pressure of the seal chamber within the design pressure

3.A3MT screw adopts special hardening to strengthen the hardness, tensile strength, finish and precision of the screw, which can be well established in the process of conveying medium, and the establishment of the oil film is the basis of ensuring the operation life of the pump

4.A3MT screw pump, standard ceramic lining, higher wear resistance

5.High wear-resistant mechanical seal, special rubber seal, double seal design, anti-fouling protection

Selection Guide

To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
