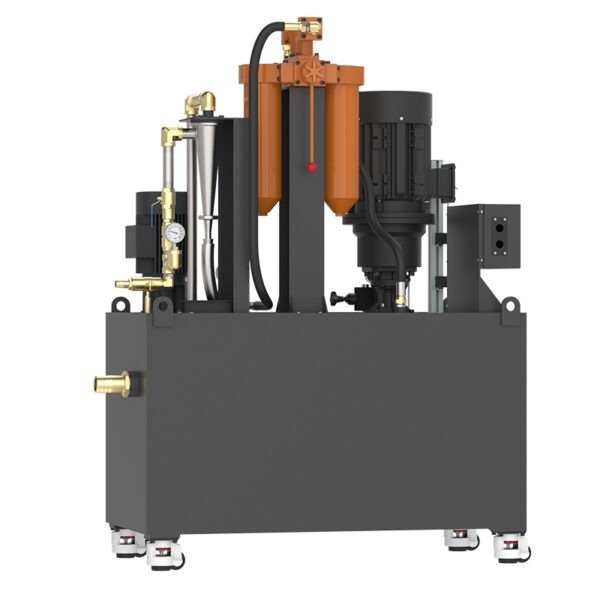

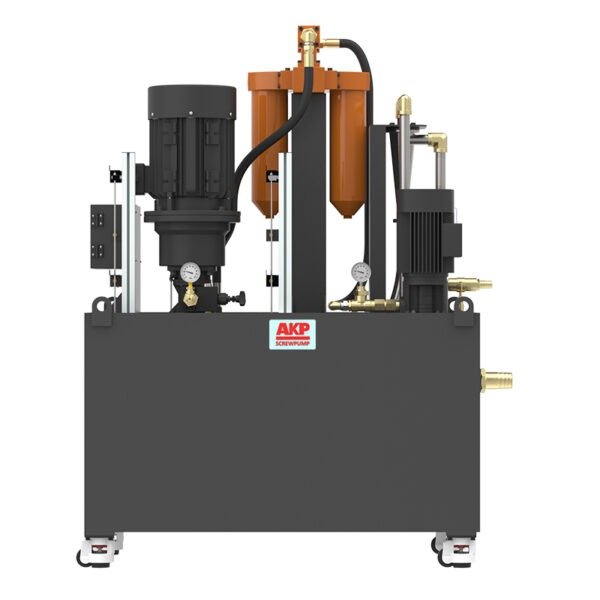

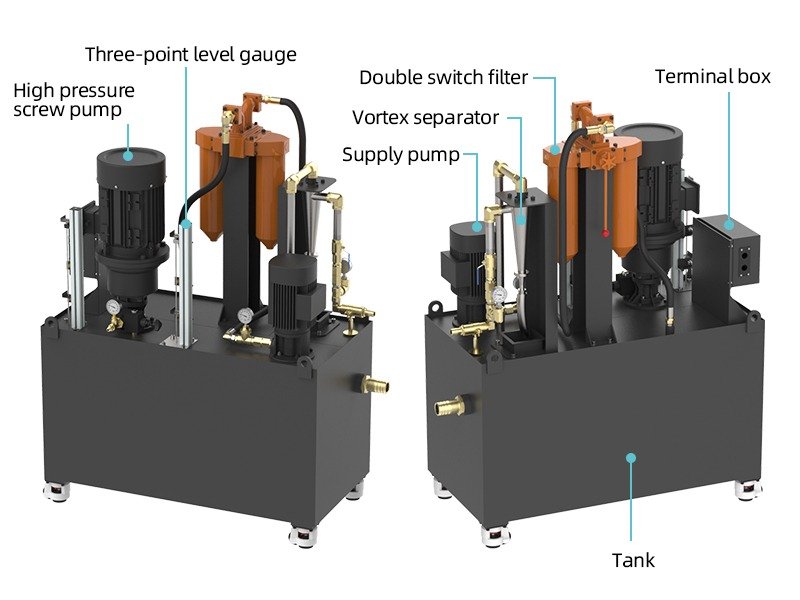

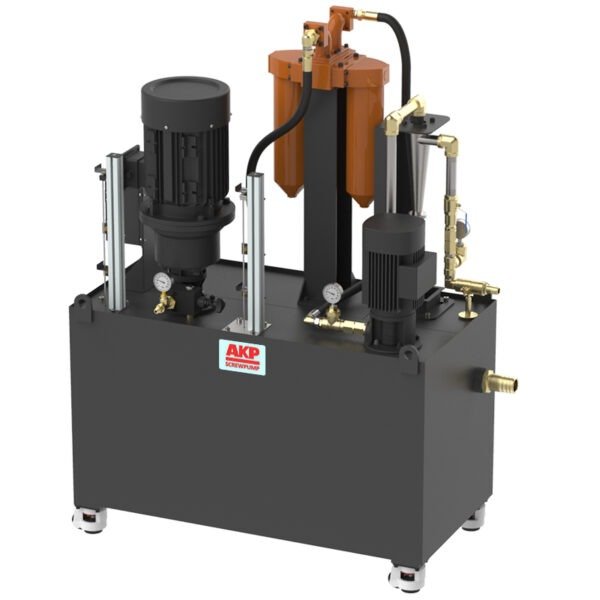

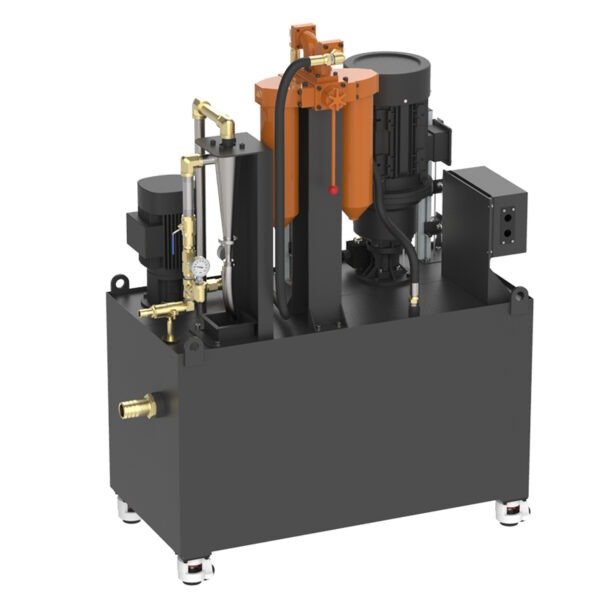

A3SS-XT7 Double switch fiter HPC systems(High pressure coolant&Filtraion systems) double cylinder filter can be used for 24 hours non-stop working conditions,under normal working conditions for single cylinder filter work, manualy switch the fiter mode when replacing the filter element. The design method of the main and secondary water tanks,the liquid slag recovery device, and the lifting pump of the secondary water tanks are adopted. The fitration method of the first stage is vortex filtration. After the filtration of the secondary water tank is completed,the lift pump transmits the coolant to the double switch filter to the main water tank,which effectively ensures that the work is not shut down for 24 hours under harsh working conditions.
Typical application scenario
Suitable for heavy chip cutting conditions, with built-in double water tank filtration structure. Compatible with vertical/horizontal machining centers, turning and miling production lines, five-axis linkage machine tools, and suitable for processing steel, aluminum, and stainless steel parts.
Scenario of main parameter
| Tank volume | 1500×600×500mm(450L) | Pressure regulator type | Two-position three-way valve/Plate pressure regulator/Proportional valve |
| Bulk volume | 1500×600×500mm | Filter combination | Vortex separator + Double switch filter |
| Screw pumpinstallation method | Vertical type | Filtration accuracy | 25μm Efficiency 98%+25μm+10μm |
| Lift pump parameter | Flow 4m³/h Head 32m | Control mode | Terminal box/Machine control |
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
