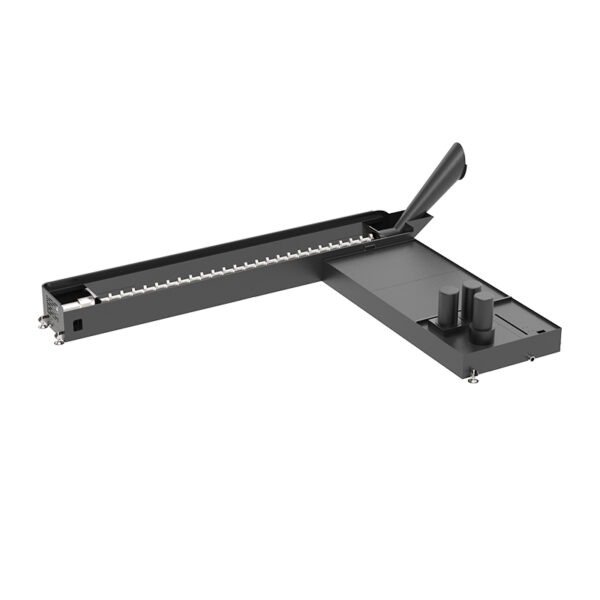

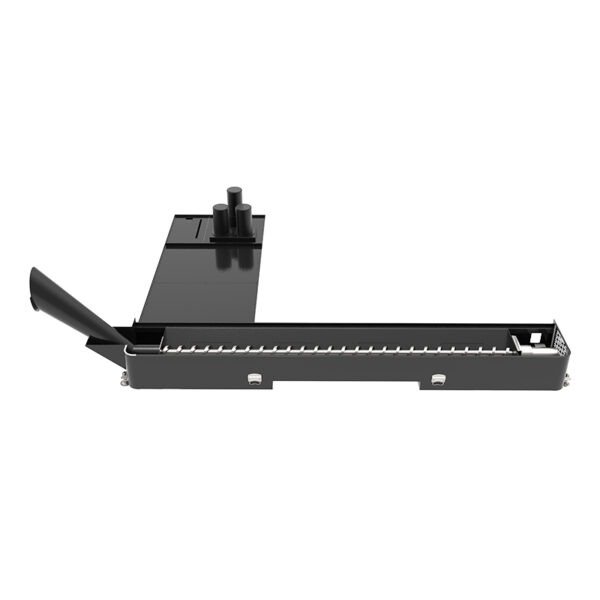

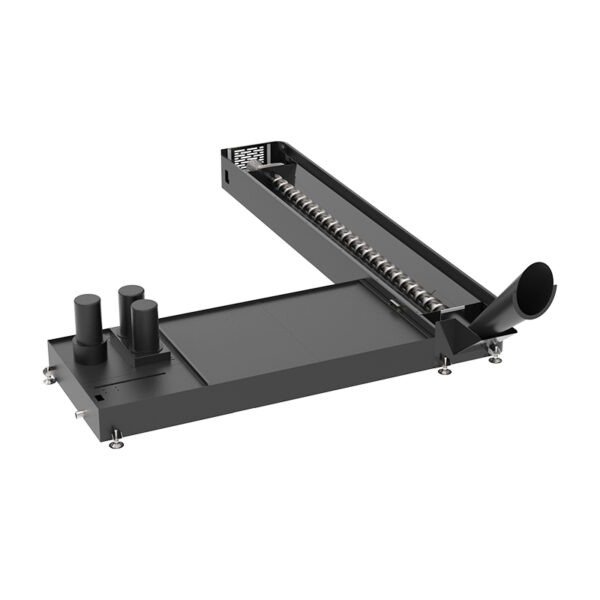

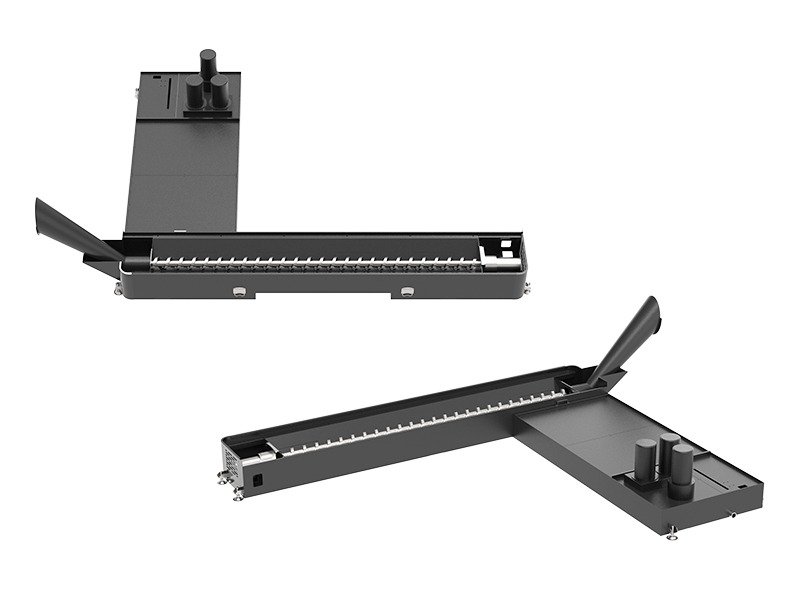

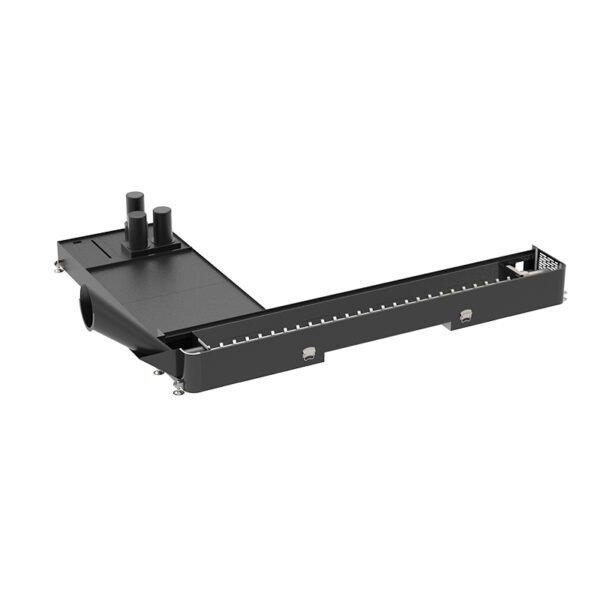

The AK-LX Screw chip conveyors are mainly applied in horizontal machining centers, five-axis machining centers, CNC grinding machines or in application scenarios with limited space. The screw conveyor is easy to install and use, with a low fallure rate. It has a good conveying efect on powder,granular or chips with a length of less than 100mm. This type of chip conveyor is usually the first step in removing chips from the processing area and is typically used in conjunction with other chip conveyors. It can solve the problem of inteligent chip removal along the horizontal axis, achieving variations in the direction and height of chip removal.

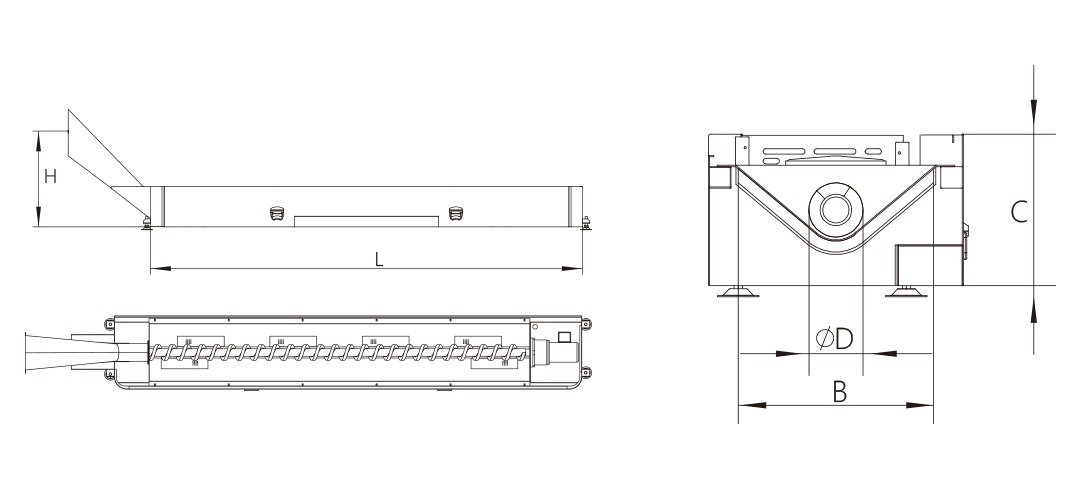

Scenario of main parameter
| Model number | L | H | B | C | D | Chip removal(kg/min) | Motor power(kW) |
| AK-LX-70 | 3000 | 1000 | 360 | User-defined | 72 | 15 | 0.75 |
| AK-LX-100 | 6000 | 1200 | 480 | 100 | 20 | 0.75 | |
| AK-LX-120 | 8000 | 1400 | 520 | 120 | 30 | 1.5 |
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
