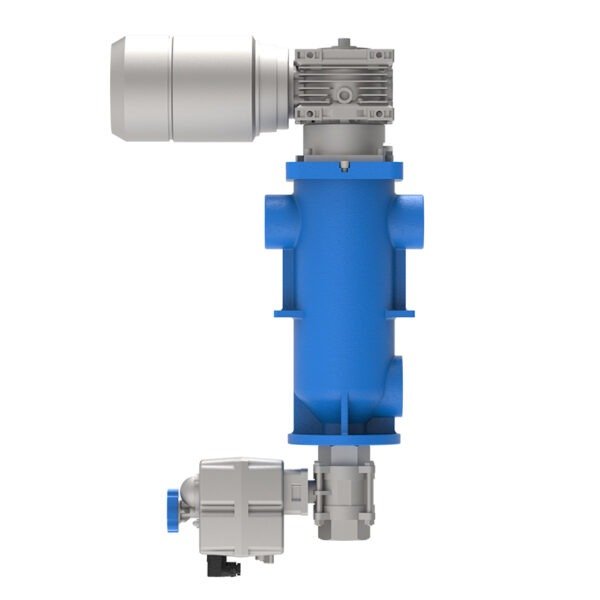

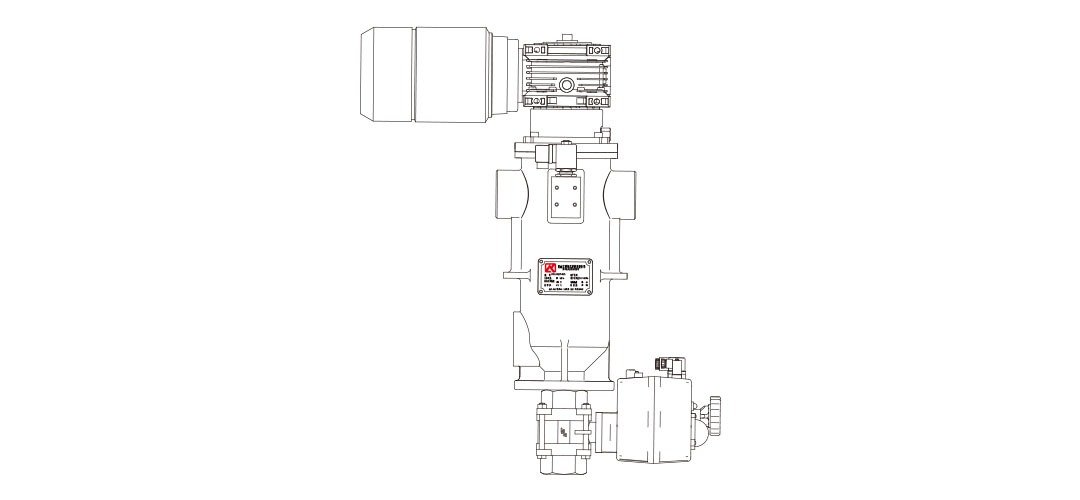

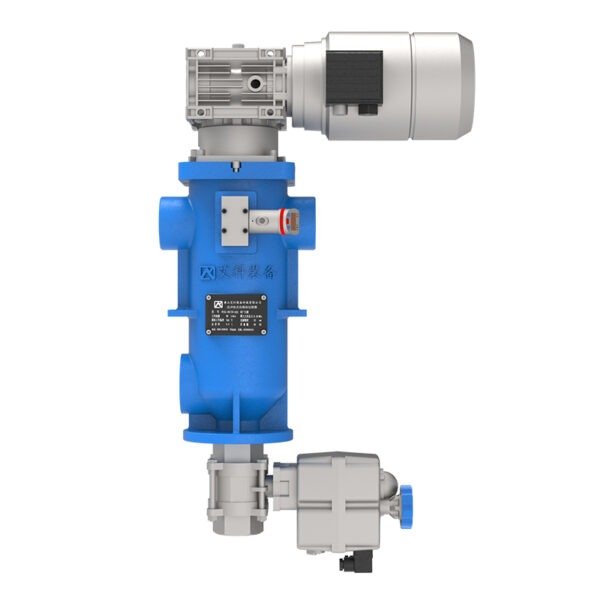

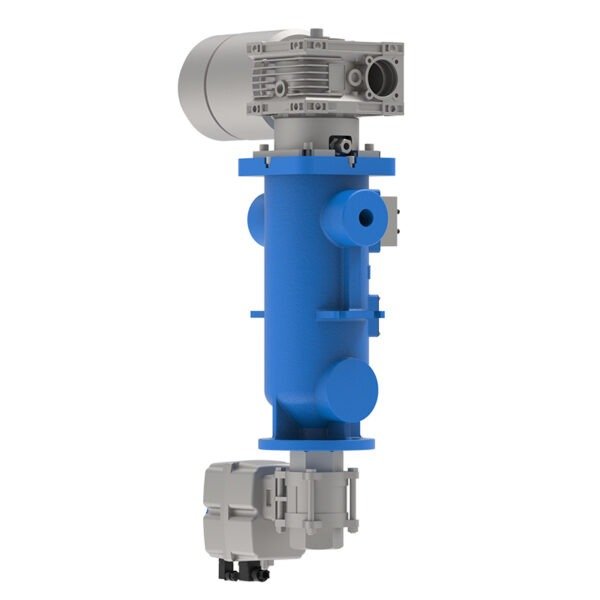

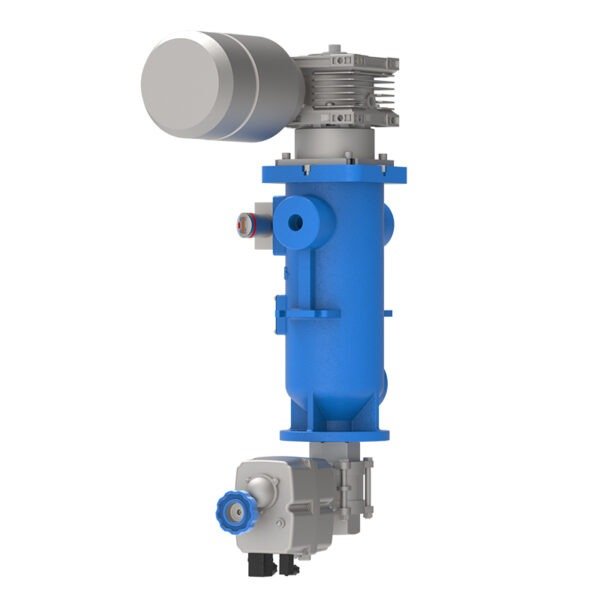

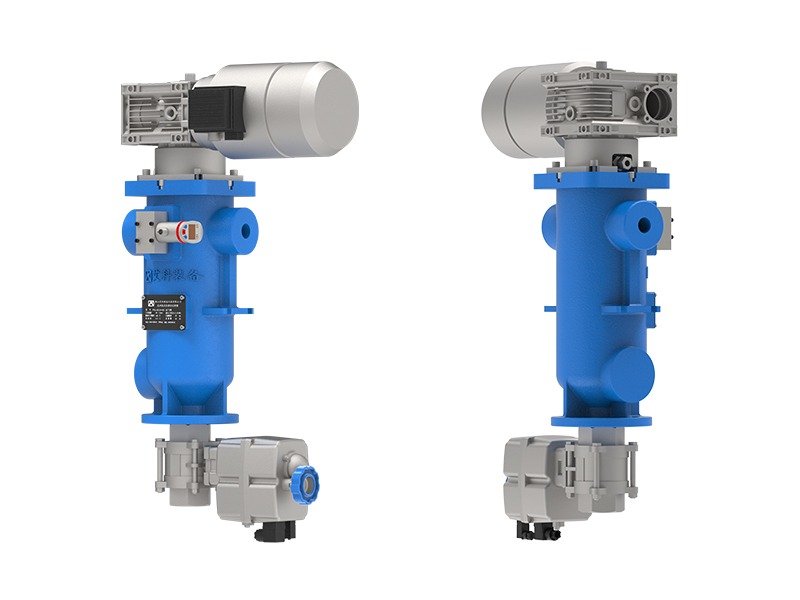

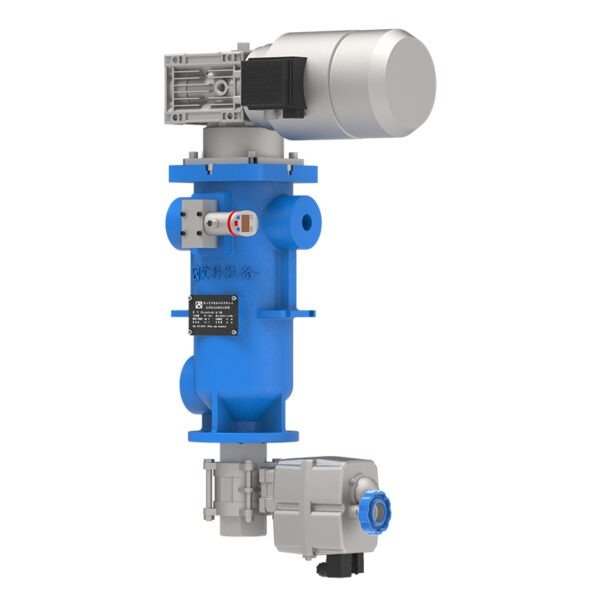

FCGL-60/25 Automatic backflushing filter

The automatic backflushing filter FCGL-60/25 belongs to the small flow series and is designed for low-viscosity fine filtration systems. This filter is installed in the pipeline and does not consume filter media during filtration. The filter can backwash the filter element without stopping the system, and the impurities precipitated at the bottom can be discharged by briefly opening the drain valve at the bottom. When the preset pressure difference value or fixed interval is reached, the backwash action of the filter will be triggered. The one-way flush valve at the top of the filter and the cleaning valve on the side will open, and the motor will drive the water gun to rotate. The clean pressurized medium entering from the top will flush the impurities on the metal wire mesh of the filter element through the nozzle of the water gun that is close to the filter element.After the backwash is completed, the drain valve at the bottom will open briefly to discharge the impurities at the bottom.
The filter element of the automatic backwash filter is of high quality,featuring an asymmetric perforated metal frame on the outside and a stainless steel wire mesh inside. The filter element exhibits good stability in filtration accuracy, and its solid frame design ensures high quality and longevity. The material options are diverse, and customization is available according to customer requirements.

Scenario of main parameter

Selection Guide

To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
