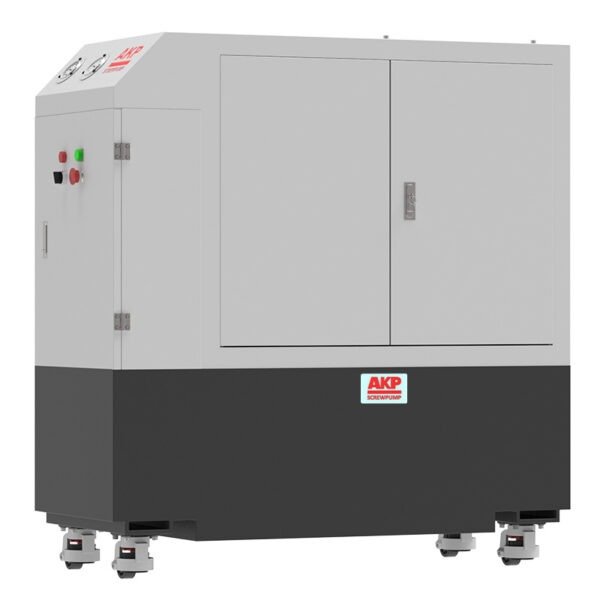

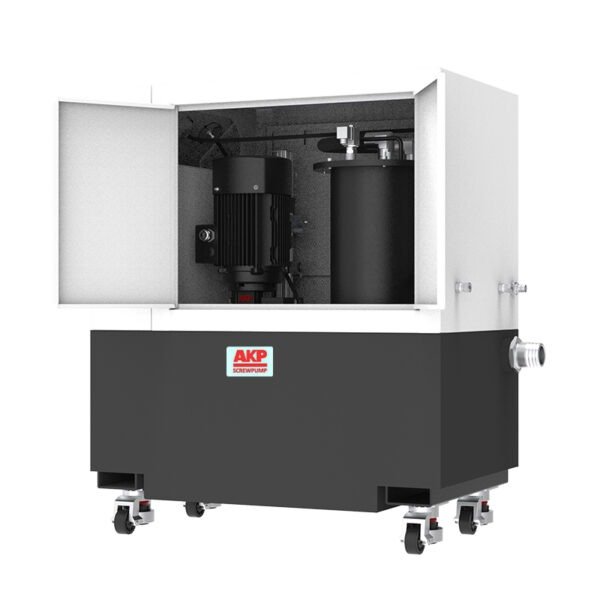

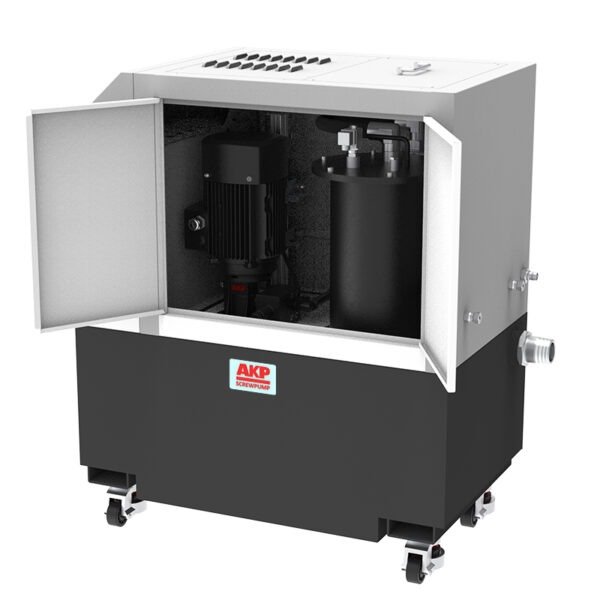

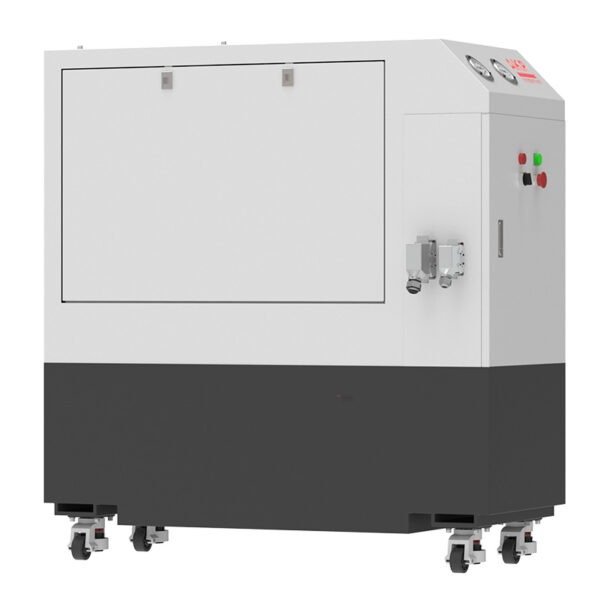

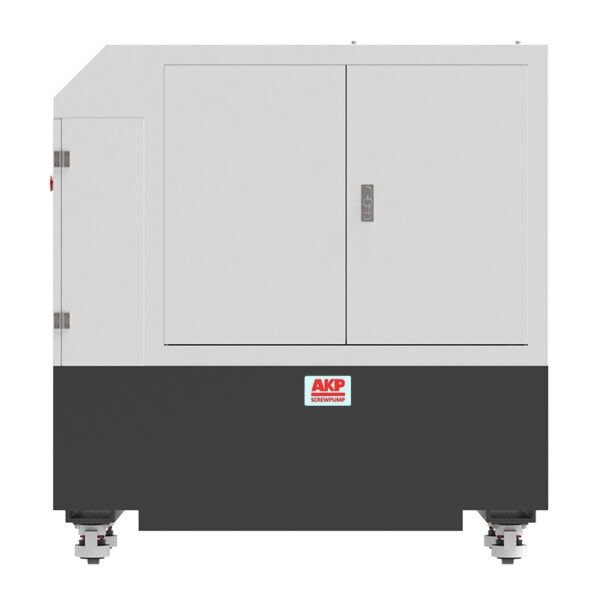

A3SS-XT1 HPC unit (High pressure coolant&Filtraion systems) features a simple and elegant design.lts compact design takes up little space and is very friendly to compact processing sites. There is almost no noise during operation, which is attributed to the working mode of the high-pressure screw pump. In large-scale automated workshops, the noise level is also within a reasonable range. The modular design of the system allows for the configuration of an electrical control cabinet or its attachment to machine tools for operation.
Typical application scenario
For those with high appearance requirements, we offer a machine tool color-matching spraying solution that is compatible with high-pressure cooling pumps ranging form 8L/min to 35L/min.It is suitable for batch continuous processing production lines,both rough and finish machining, and can be used as a central water outlet cooling system or a high-pressure chip breaking system.
Scenario of main parameter
| Tank volume | 1250×500×500mm(310L) | Pressure regulator type | Two-position three-way valve/Plate pressure regulator/Proportional valve |

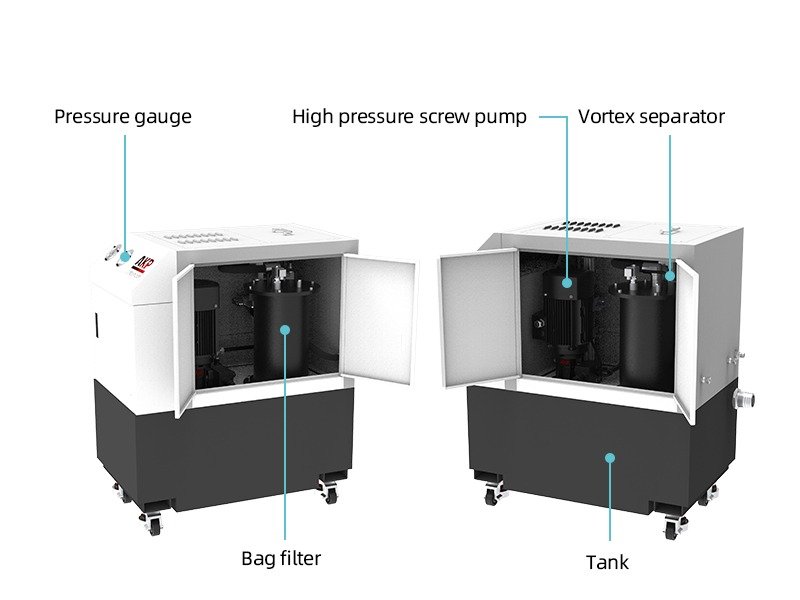

| Bulk volume | 1500×600×500mm | Filter combination | Vortex separator + Bag filter |
| Screw pumpinstallation method | Vertical type | Filtration accuracy | 25μm Efficiency 98%+25μm |
| Lift pump parameter | Flow 4m³/h Head 32m | Control mode | Terminal box/Machine control |
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
