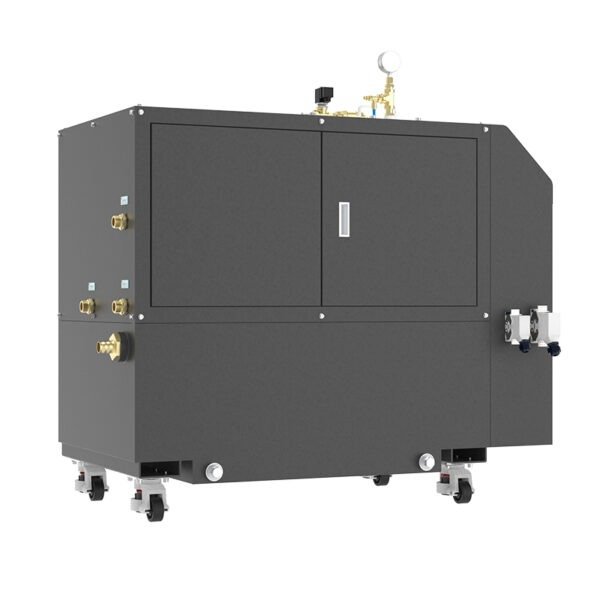

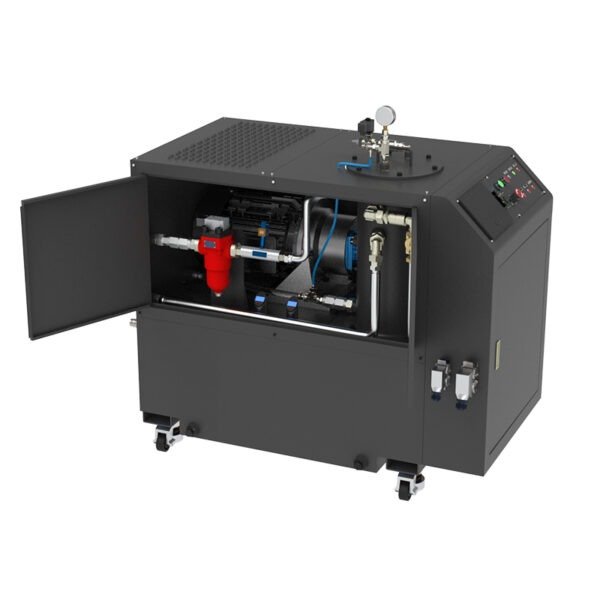

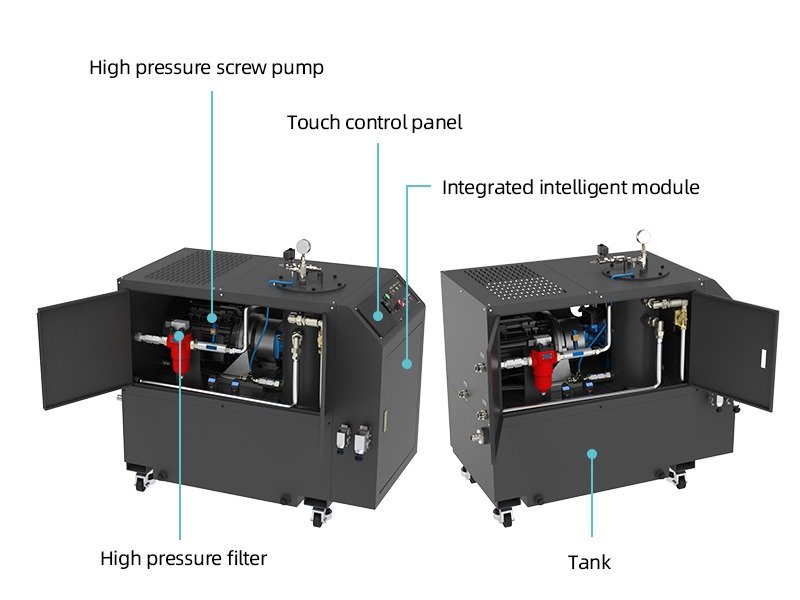

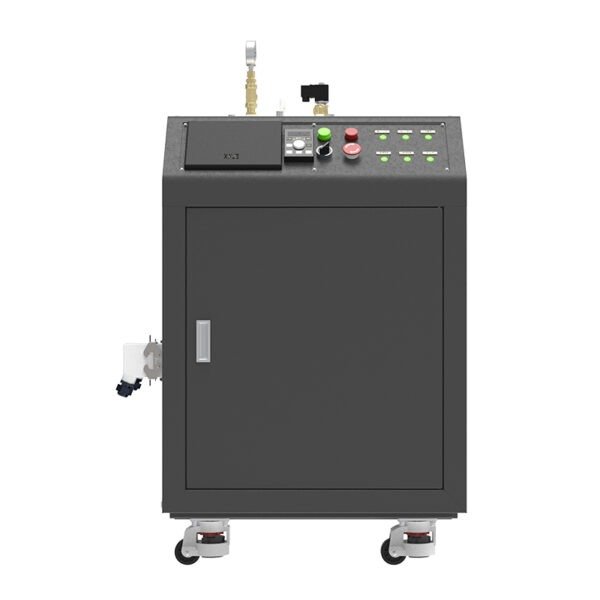

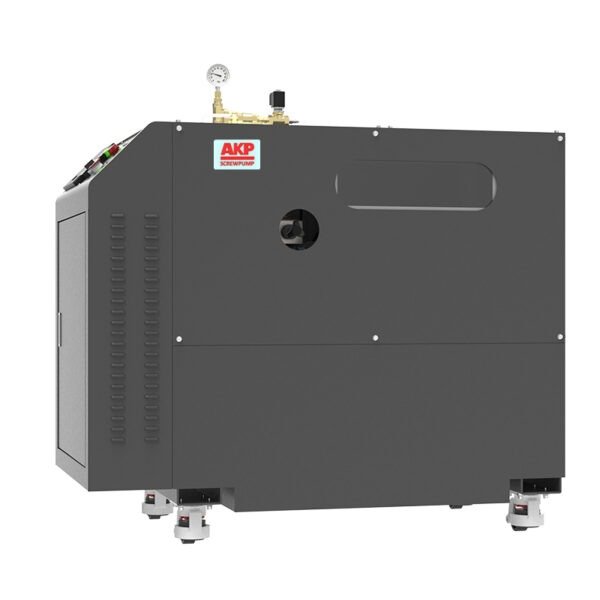

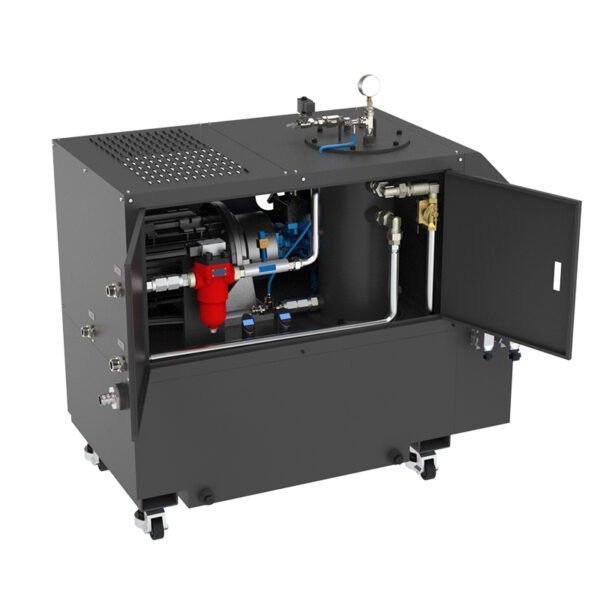

A3SS-XT4 Human-machine HPC unit(High pressure coolant&Filtraion systems), touch screen interface to control the operation of the entire system, signal feedback. Before starting. the user can set the pressure value of 8 sections by themselves and the pressure value can be selected according to the size of the tool in the work. After the working pressure valie is set, the system will automatically adjust the flow rate and pressure value according to the size of the tool to stabilize the set parameters. In the debugging process can be switched to manual mode, manual mode can be tested separately high pressure pump, lift pump, self-ceaning filter, etc.
Typical application scenario
Intelligent segmented control within 15MPa, precise adaptive control of pressure and output flow, utra-quiet design. Provide machine tool same color spraying solution, compatible with vertical/horizontal machining centers, turning and miling equipment,and efficient processing verification of steel and aluminum parts.
Scenario of main parameter
| Tank volume | 1300×600×550mm(420L) | Pressure regulator type | Two-position three-way valve/Plate pressure regulator/Proportional valve |
| Bulk volume | 1400×600×550mm | Filter combination | Vortex separator + Bag filter+High pressure filter |
| Screw pumpinstallation method | Horizontal type | Filtration accuracy | 25μm Efficiency 98%+20μm |
| Lift pump parameter | Flow 4m³/h Head 30m | Control mode | Integrated intelligent module |
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
