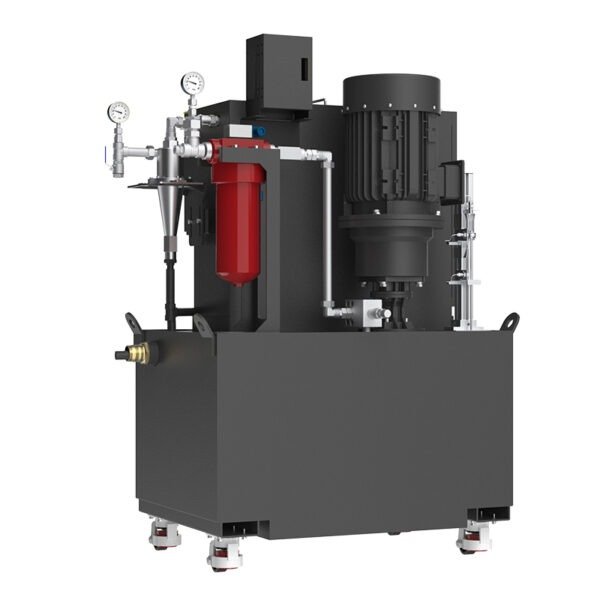

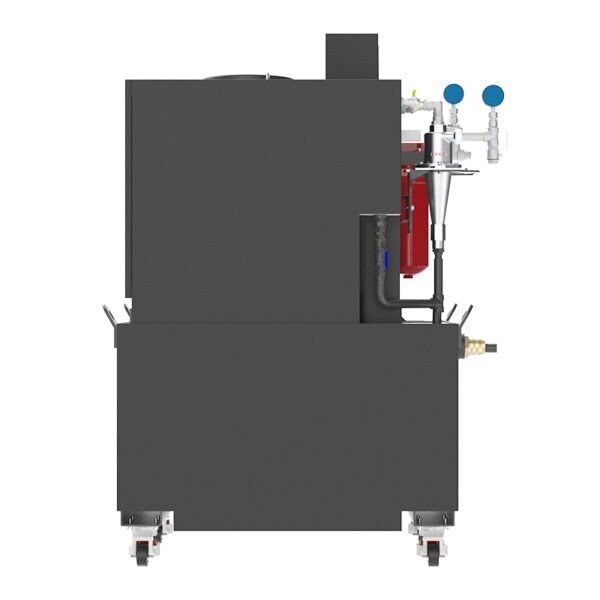

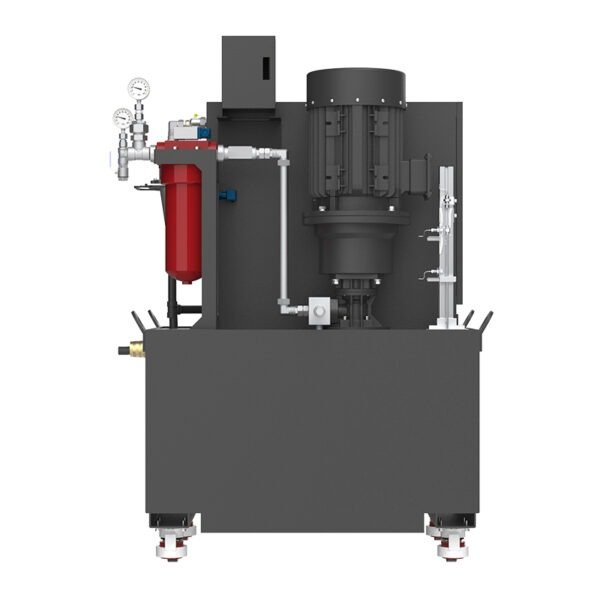

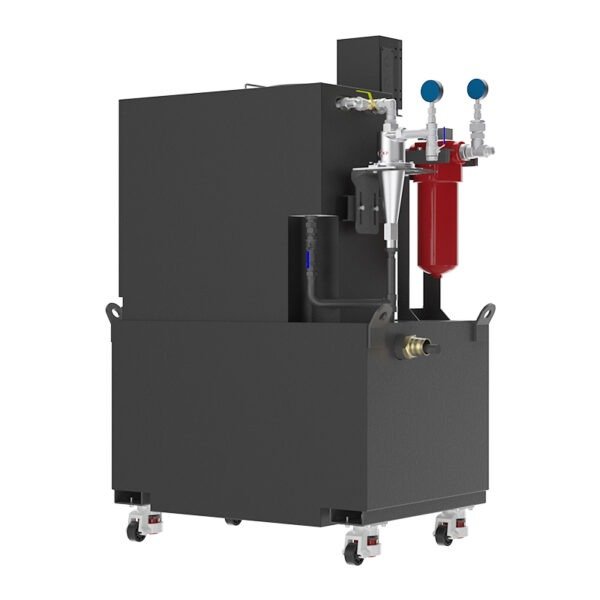

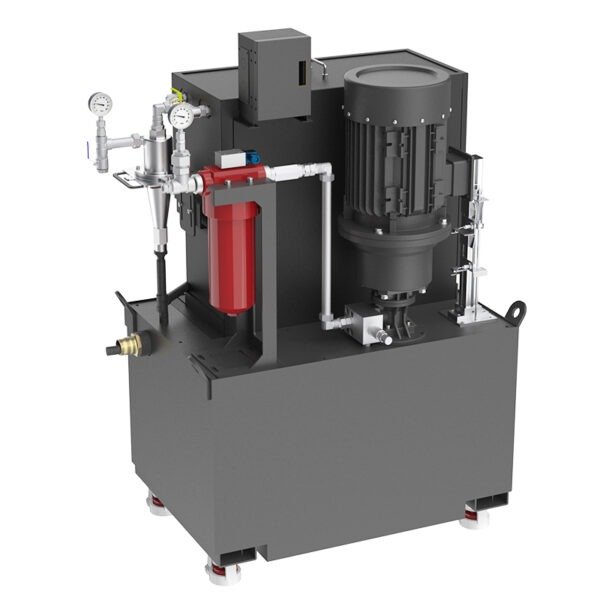

A3SS-XT13 Double switch bag HPC systems(High pressure coolant&Filtraion systems), suitable for processing fields such as steel parts and aluminum alloys, it has a very good fitering effect on various fine chips. The filtration accuracy can be customzed from 15μm to 60μm. The hanging type filter bags are used in pairs and can be replaced for dirty bags during non-stop operation. The optimized design ensures a longer usage and replacement cycle for the flter bags. The modular design supports customized selection for diferent types of machines and working conditions.
Typical application scenario
Suitable for heavy chipping conditions, vortex separator with bag filter,vertical pump assembly skid-mounted structure.Compatible with vertical/horizontal machining centers, turning and milling production lines, and suitable for machining steel aluminum, stainless steel, etc.
Scenario of main parameter
| Tank volume | 905×635×550mm(300L) | Pressure regulator type | Two-position three-way valve/Plate pressure regulator/Proportional valve |

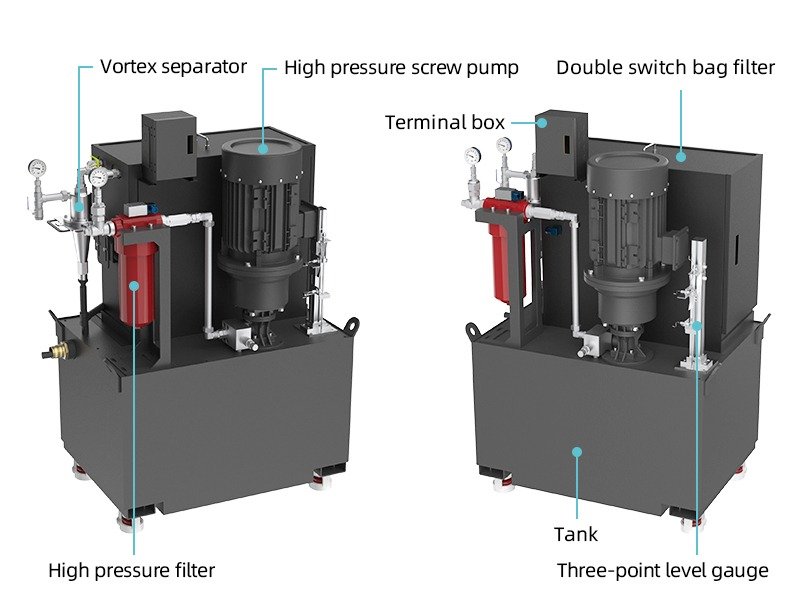

| Bulk volume | 1049×635×1400mm | Filter combination | Vortex separator + Hanging bag filtration + High pressure filter |
| Screw pump installation method | Vertical type | Filtration accuracy | 25μm Efficiency 98%+25μm+20μm |
| Lift pump parameter | Selectable | Control mode | Integrated PLC/AKP module/Terminal box |
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
