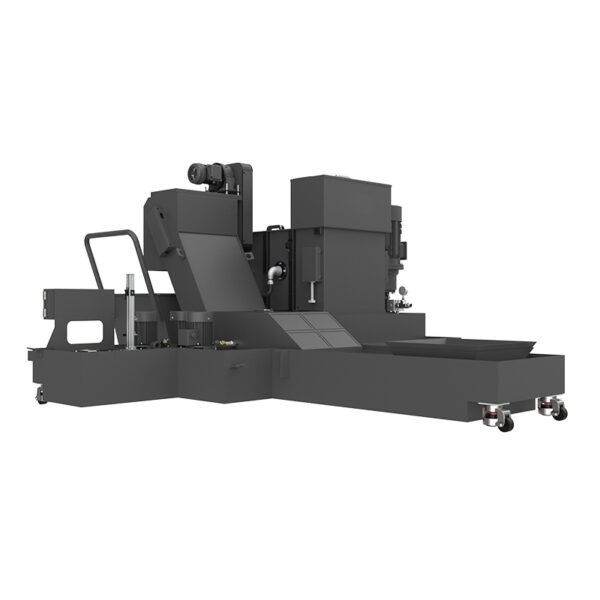

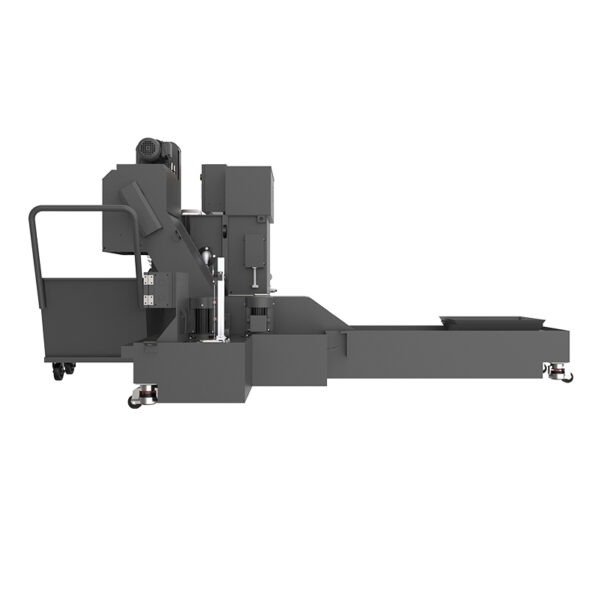

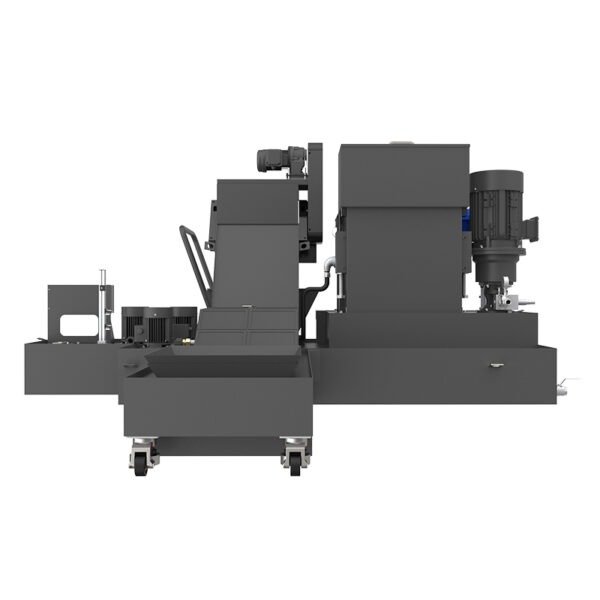

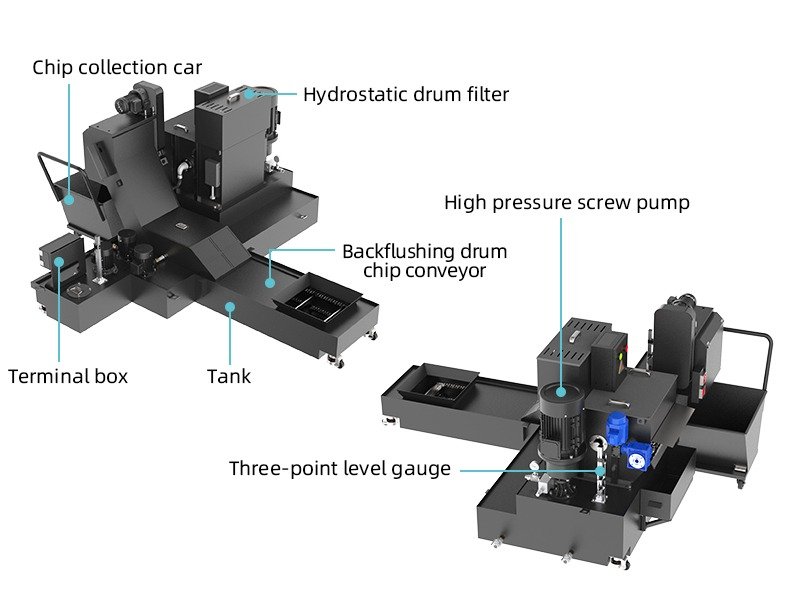

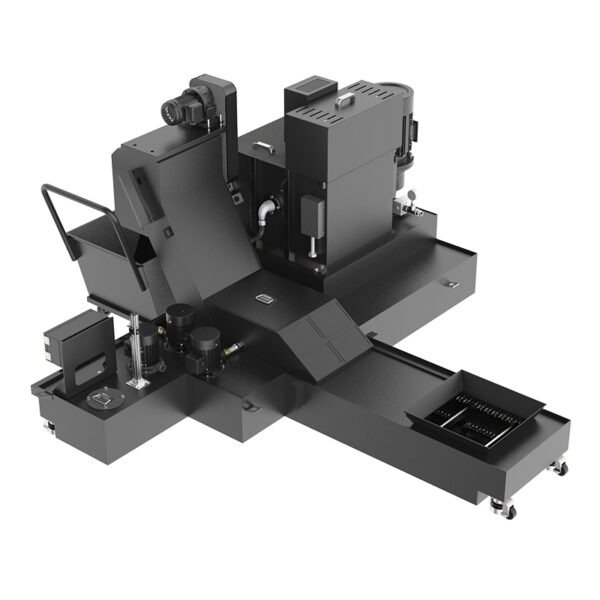

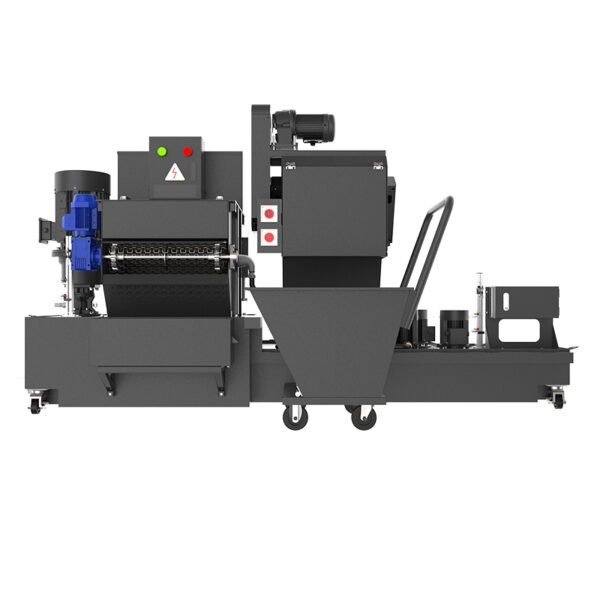

AK-GS-YT3 Chip removal and drum filter central jet cleaner is a composite chip removal and filtration device that integrates a chain plate or scraper chip conveyor and a drum filter system. It is suitable for the separation of chips and debris of non-ferous and ferous metals and coolant filtration. The equipment runs smoothly and reliably, can effectively and thoroughly remove chips, and solves the problem of ordinary chain plate chip conveyors being brought back to the inside of the shell due to debris adhering to the chain plate during wet processing this series of equipment consists of modules such as scraper/magnetic scraper chip conveyor, drum filter, oil-water separator, liquid level detection device, electrical control system, water tank and fine fiter. Its working principle is to use filter paper to separate fine chips and impurities in the coolant, there by ensuring the cleanliness of the coolant.
Scenario of main parameter

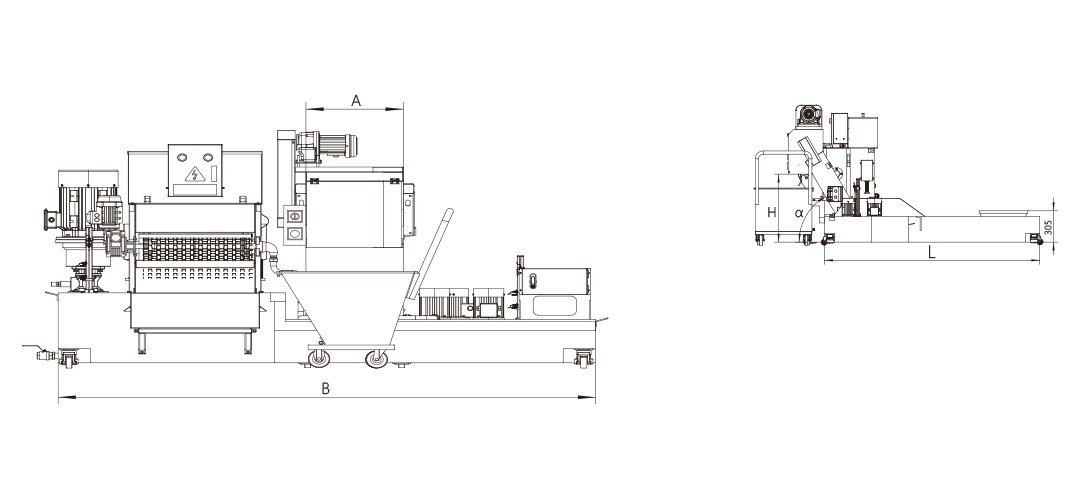

| Model number | L | H | A | B | α | Chip removal(kg/min) | Internal cooling pressure(bar) | Internal cooling flow(L/min) |
| AK-GS-YT3-450 | User-defined | 450 | User-defined | 0° 30° 45° 60° |
25 | 20-70 | 20-100 | |
| AK-GS-YT3-550 | 550 | 30 | ||||||
| AK-GS-YT3-650 | 650 | 35 | ||||||
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
