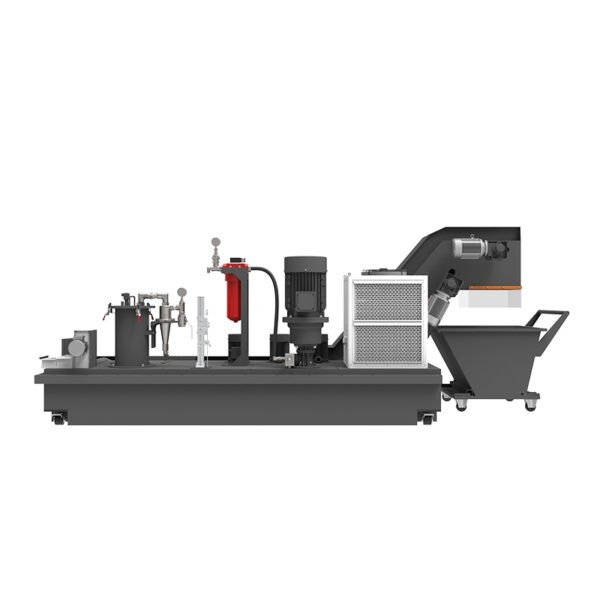

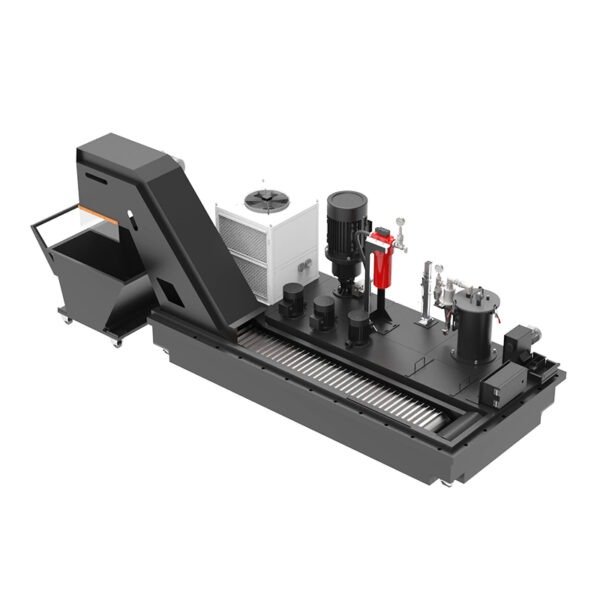

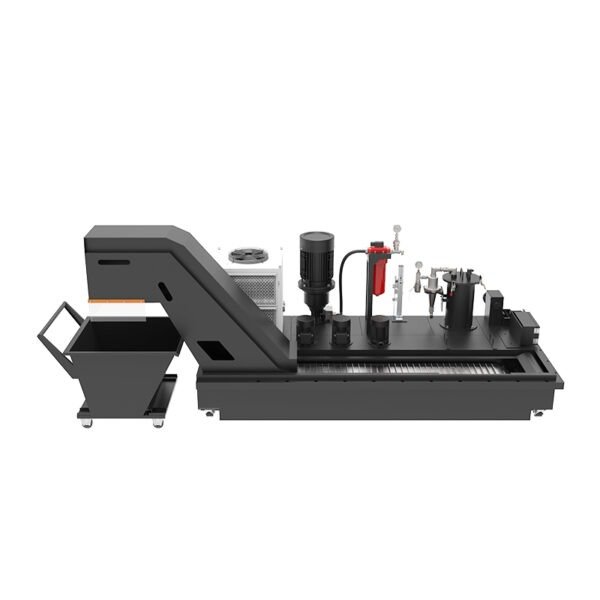

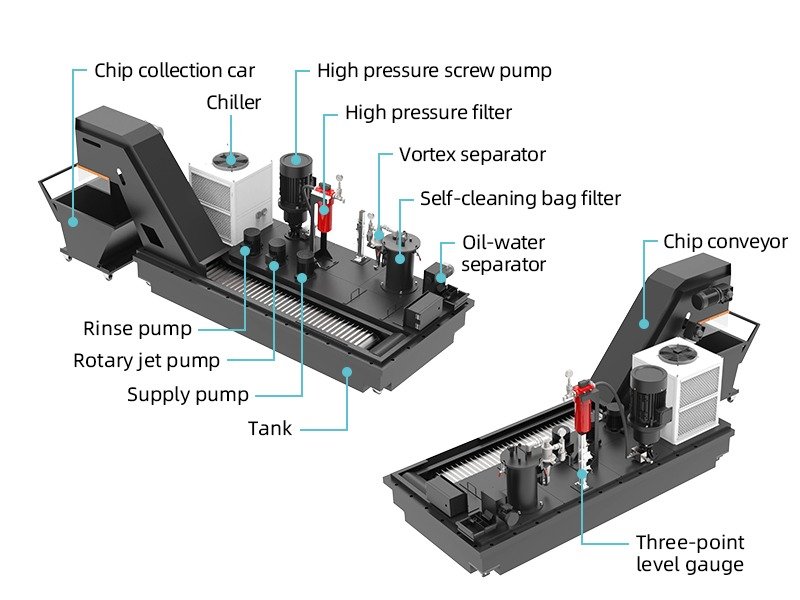

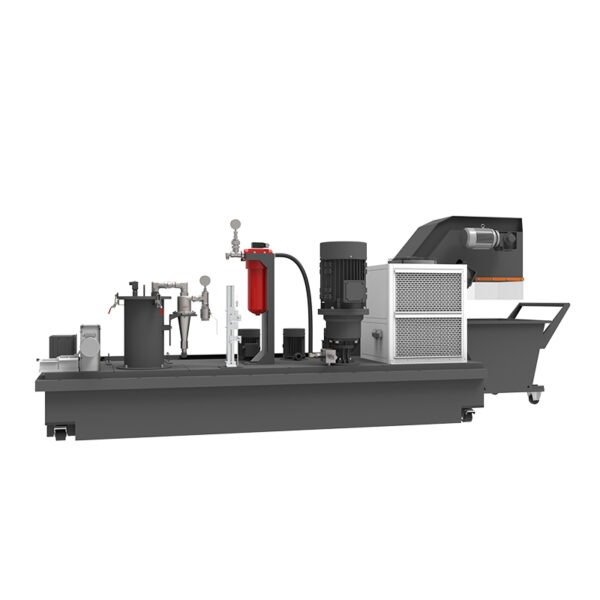

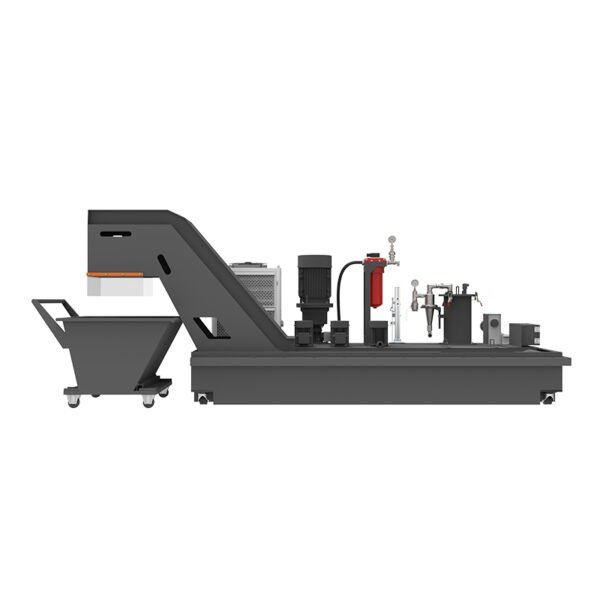

AK-ZH-YT2 Integrated chip conveyor central jet cleaner consists of a scraper/magnetic scraper chip conveyor, a drum filter, an oil-water separator, a liquid level detection device, an electrical control system, a water tank, a fine fiter and other modules. Its features include automatic drum cleaning, continuous fitration, high-precision filtration, maintenance-free, and no consumables. It can fully meet the filtering needs of the machining center in terms of chip fushing, spindle internal cooling and tool cooling. Since special machine tools and machining centers have strict requirements on chip removal volume, coolant filtration accuracy, and the flow and pressure of the cooling pump, users need to provide corresponding technical parameters when ordering in order to optimize the design this equipment is suitable for various machine tools and machining centers that require high coolant filtration accuracy.Its can be used for the separation of short chips such as aluminum chips and cast iron chips and coolant filtration.
Scenario of main parameter

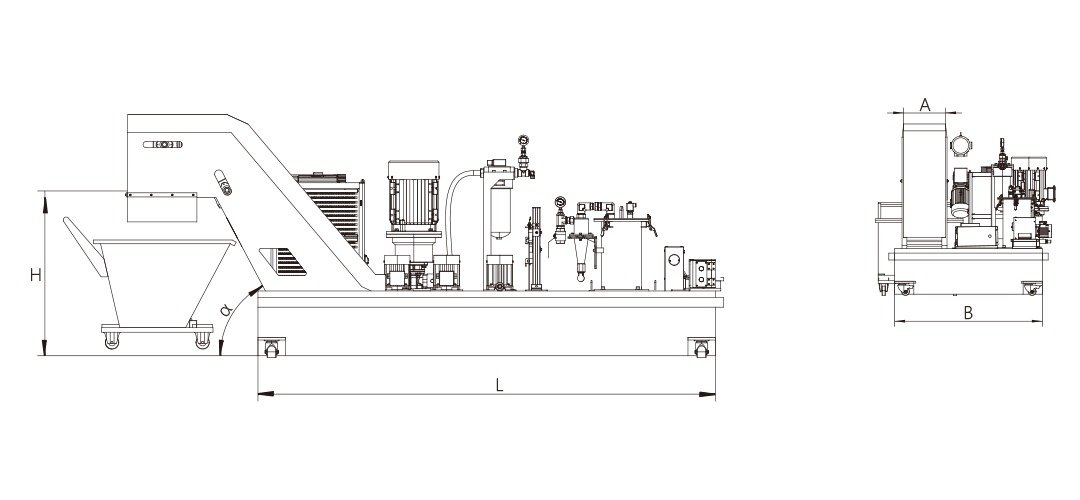

| Model number | L | H | A | B | α | Chip removal(kg/min) | Internal cooling pressure(bar) | Internal cooling flow(L/min) |
| AK-ZH-YT2-350 | User-defined | 350 | User-defined | 0° 30° 45° 60° |
25 | 20-70 | 20-100 | |
| AK-ZH-YT2-450 | 450 | 30 | ||||||
| AK-ZH-YT2-550 | 550 | 35 | ||||||
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
