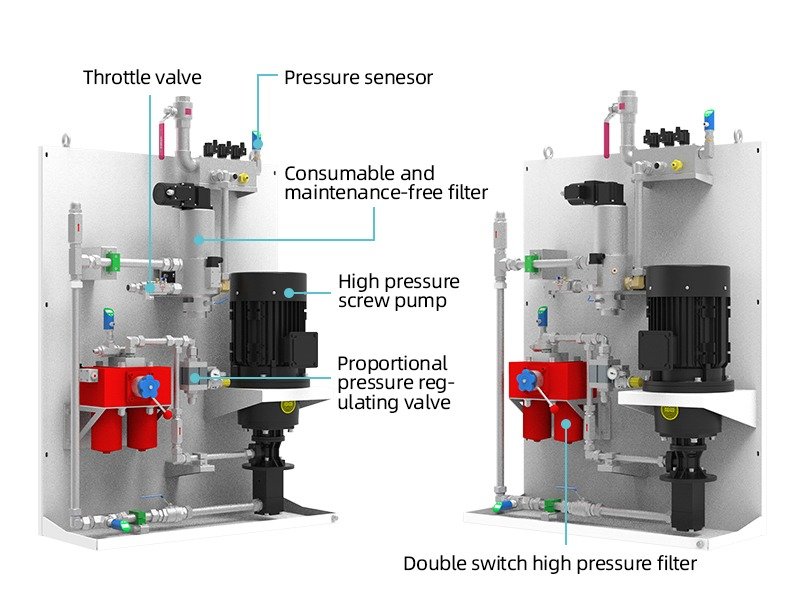

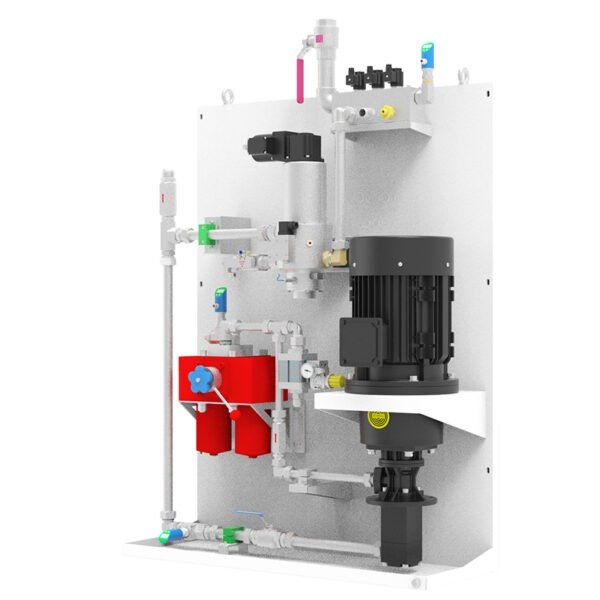

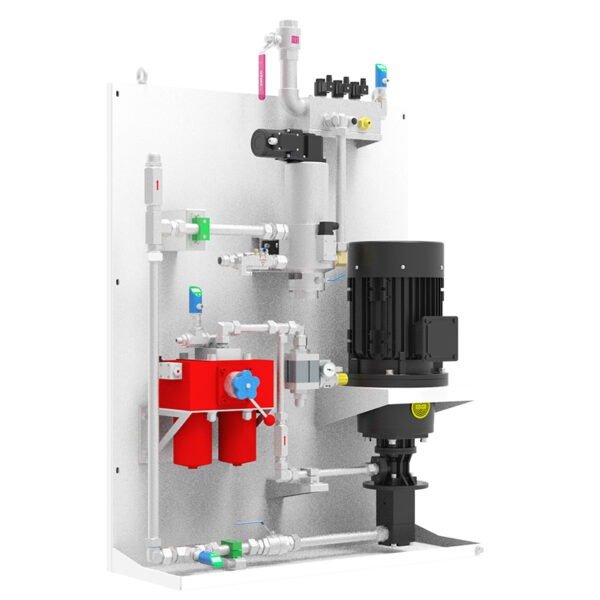

A3SS-XT6 Machine tool plate hanging HPC systems(High pressure coolant&Filtraion systems). The machine backplane is installed in one piece. Applicable to the centralized filtration scheme of multi-machine tools, the tank less design has higher requirements for the filtration grade of the centralized liquid supply, and has certain positive pressure requirements for the centralized fuid supply. It is necessary to ensure that the high-pressure screw pump does not suck or run dry during operation.Wall-mounted has the advantages of low procurement cost, easy maintenance and high integrity.

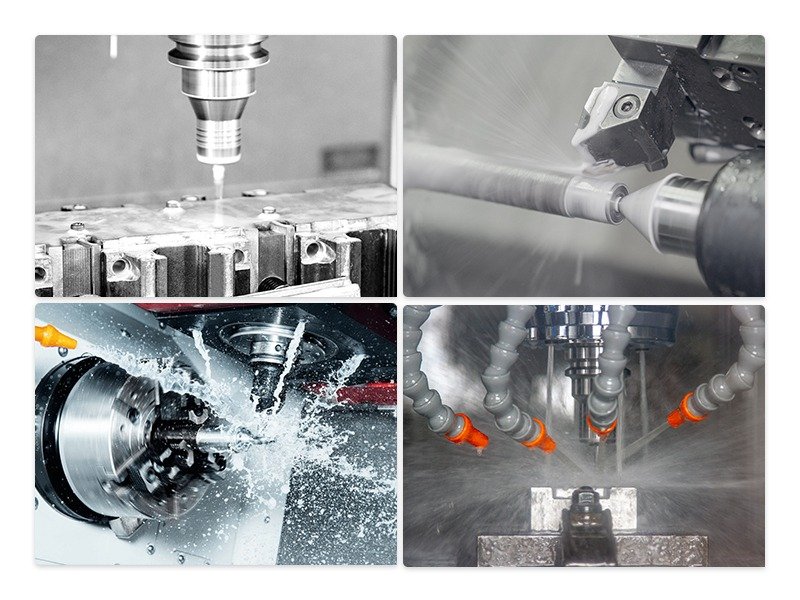

Typical application scenario
Suitable for overall fitering in multi-machine workshops. It features a wall-mounted maintenance-free structure. It has certain requirements for the cleanliness level of the centralized filtered cuting fuid. The commonly used working pressure is 0 – 7 MPa.
Scenario of main parameter
| Filter method | Consumable-free and maintenance-freefilter+ High-pressure dualswitching filtration | Filtration accuracy | 20-50μm+5-20μm |
| Pressure regulator valve type | Manual air-driven pressure regulating valve, proportional pressure regulating valve, manual plate pressure regulating valve | Control method | Machine tool control |
| Pressure of high-pressure pump unit | 0-70bar | Flow rate of high-pressure pump unit |
0-40L/min |
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
