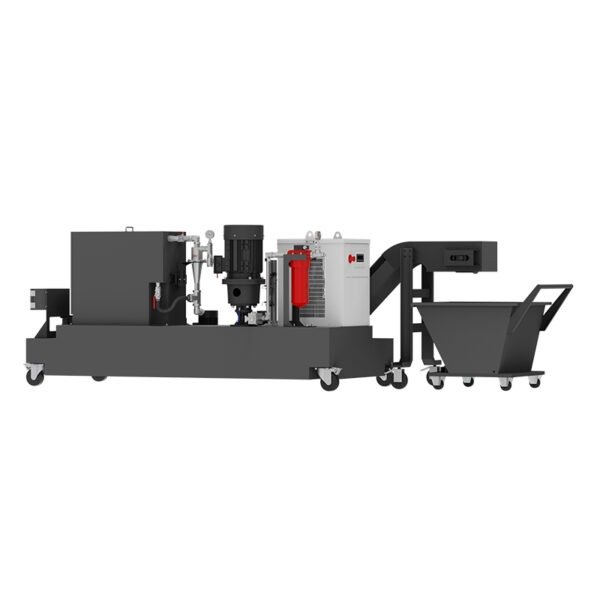

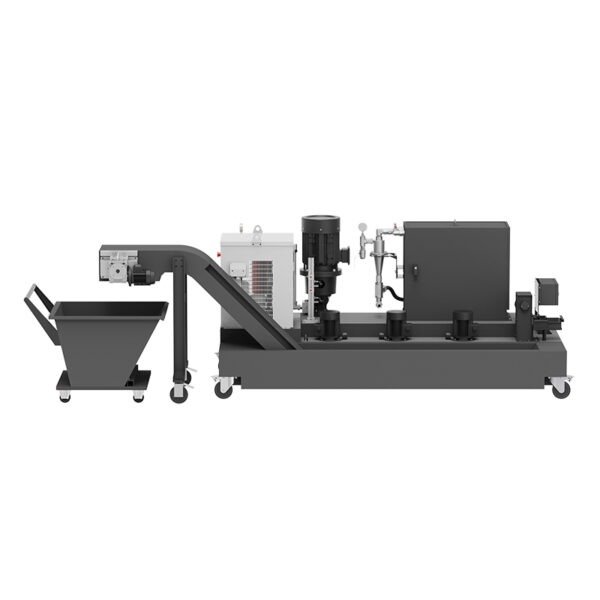

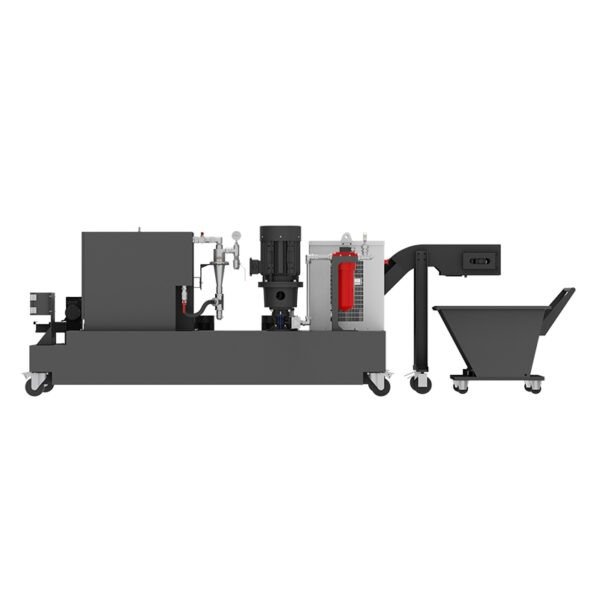

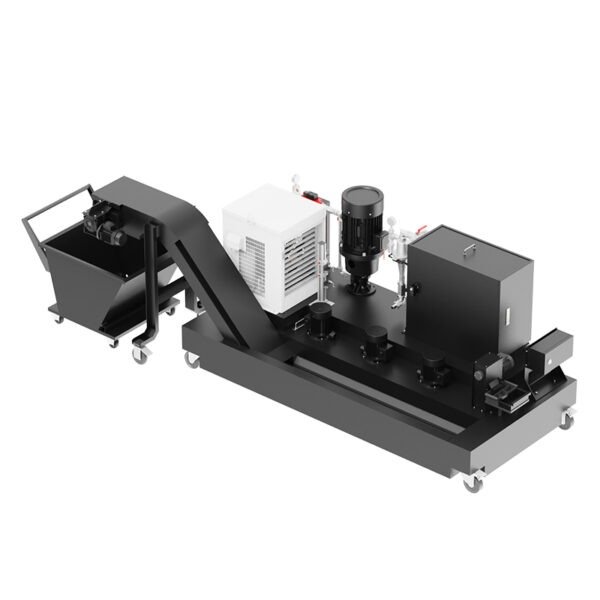

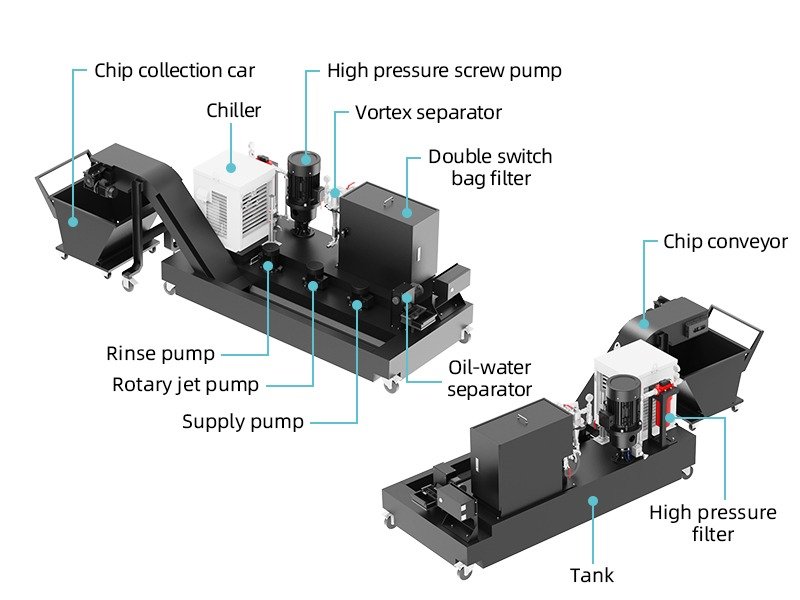

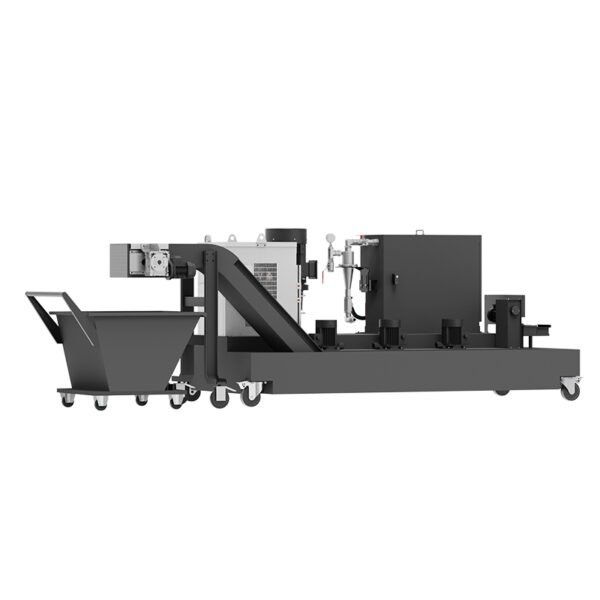

AK-GS-YT1 Double switch bag chip conveyor integrated central jet cleaner is a composite chip filter device that integrates a chain plate or scraper chip conveyor with a double-switch bag filter system. Its double-switch bag fIlter system contains two filiter units ,each equipped with three bags. The two units are used alternately and can be switched automatically to achieve continuous operation without stopping. The optimized design extends the use and replacement cycle of the bags, and the modular design supports customized selection for different machine tool types and working conditions. This series of equipment consists of modules such as scraper/magnetic scraper chip conveyor, bag filter, oil-water separator, oil cooler,liquid level detection device, electrical control system,water tank and fine filter. Its working principle is to use fiter paper to separate fine chips and impurities in the coolant to ensure the cleanliness of the coolant.
Scenario of main parameter

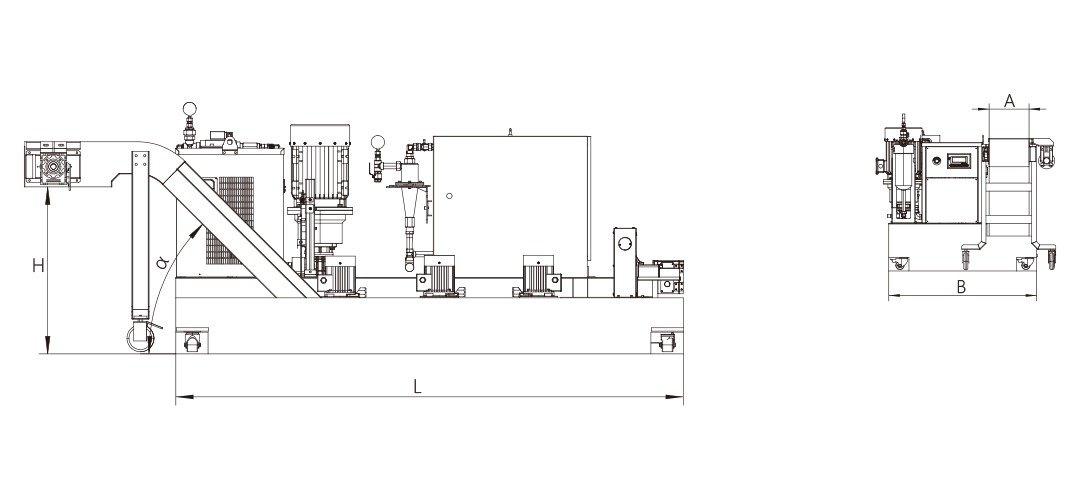

| Model number | L | H | A | B | α | Chip removal(kg/min) | Internal cooling pressure(bar) | Internal cooling flow(L/min) |
| AK-GS-YT1-250 | User-defined | 250 | User-defined | 0° 30° 45° 60° |
25 | 20-70 | 20-100 | |
| AK-GS-YT1-350 | 350 | 30 | ||||||
| AK-GS-YT1-450 | 450 | 35 | ||||||
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
