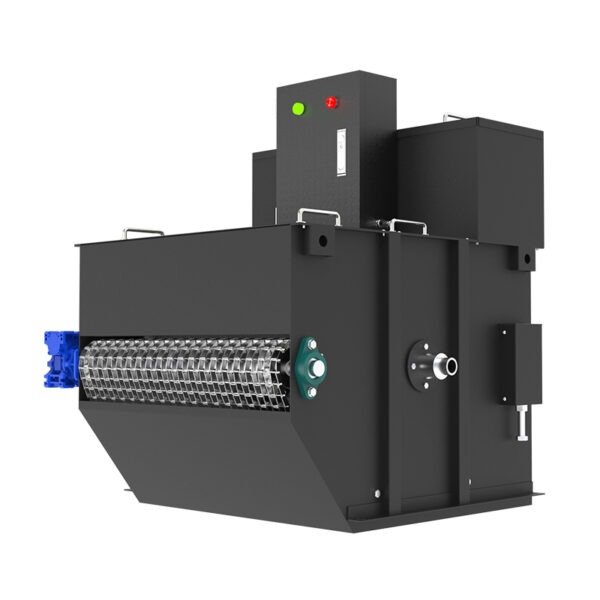

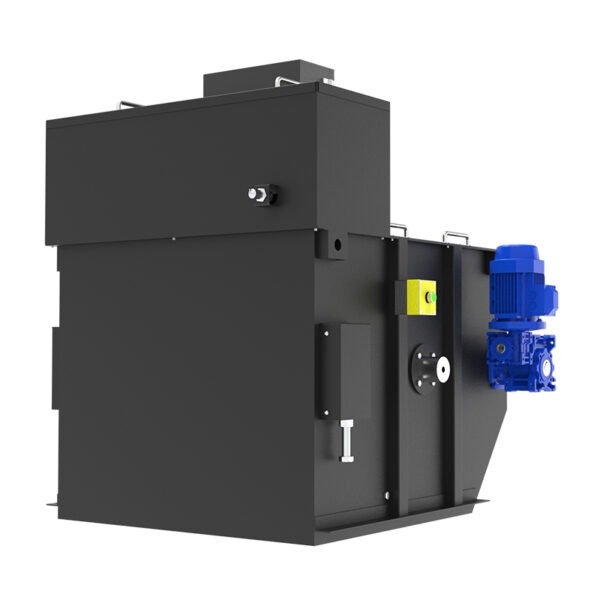

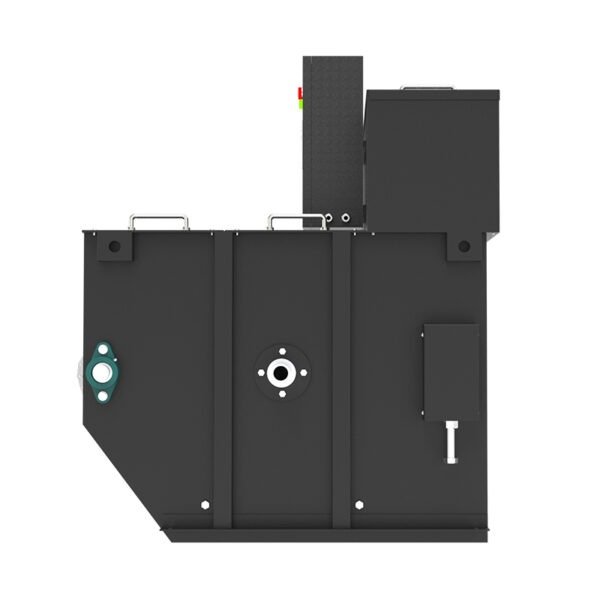

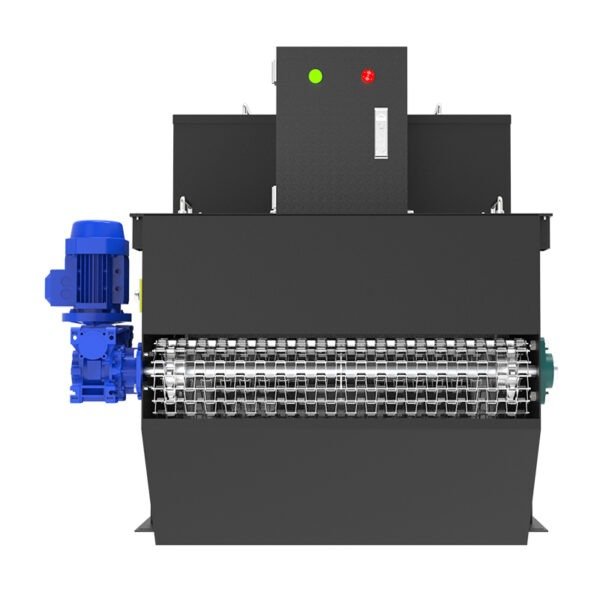

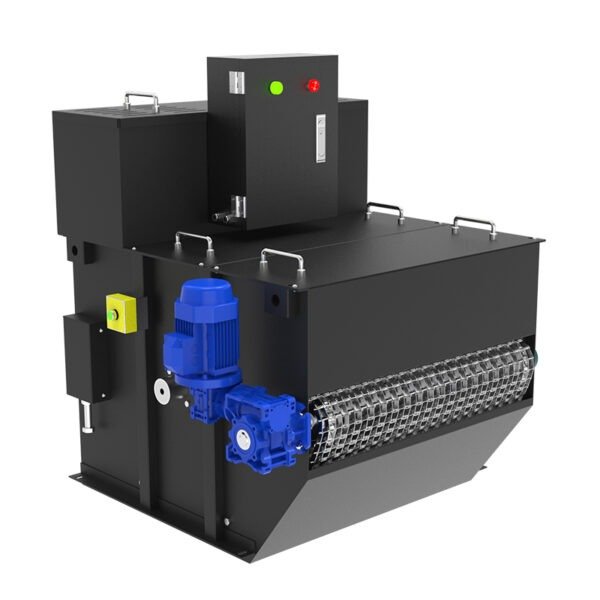

AK-GSGL Drum filter is mainly composed of the following parts: The filter non-woven fabric (commonly known as filter cloth),transmision structure, signaling mechanism, drum, reducer etc. The machine can automatically replace the filter cloth. When there are too many impurities on the fiter cloth, the liquid level rises, the signaling device sends a signal, the reducer works, and after the filter cloth is updated, the liquid level drops, the machine stops rotating, and enters the next working filtration cycle. The utilization rate of the filter cloth has been improved and the floor space occupied by the equipment has been reduced. It can be equipped with water tanks, pumps, etc to form a filtration system.
Scenario of main parameter

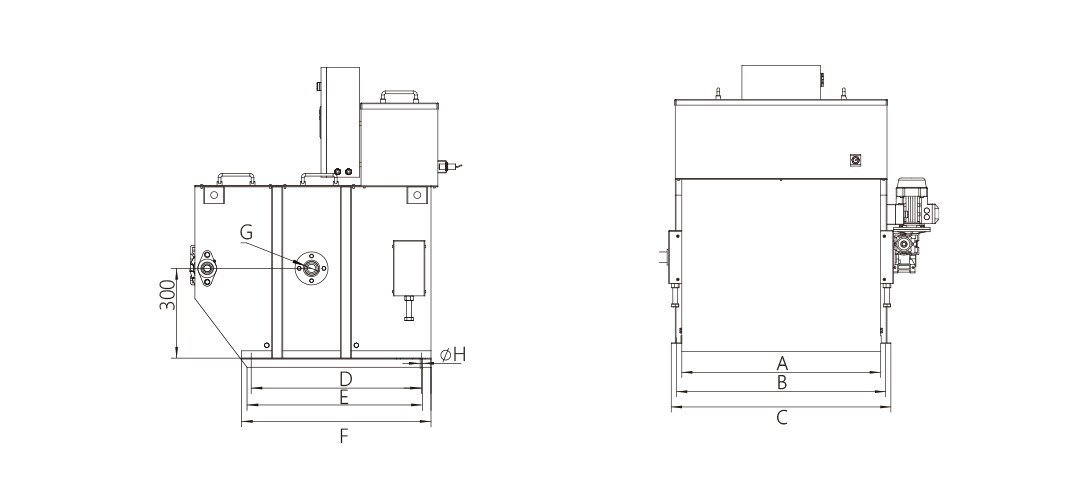

| Model number | Flow rate (L/min) |
A | B | C | D | A1 | A2 | B1 | B2 | Filter paper wide (mm) |
Water inlet | Motor power (kW) |
| AK-GSGL-100 | 100 | 550 | 610 | 560 | 590 | 540 | 570 | 710 | 300 | 480 | DN50 | 0.12 |
| AK-GSGL-150 | 150 | 550 | 610 | 560 | 590 | 540 | 570 | 710 | 300 | 520 | DN50 | 0.12 |
| AK-GSGL-200 | 200 | 665 | 860 | 560 | 675 | 625 | 655 | 860 | 415 | 520 | DN65 | 0.12 |
| AK-GSGL-250 | 250 | 665 | 860 | 760 | 675 | 625 | 655 | 860 | 415 | 720 | DN65 | 0.12 |
| AK-GSGL-350 | 350 | 910 | 1100 | 760 | 850 | 800 | 830 | 1100 | 650 | 720 | DN80 | 0.12 |
| AK-GSGL-500 | 500 | 910 | 1100 | 760 | 850 | 800 | 830 | 1100 | 650 | 720 | DN80 | 0.18 |
| AK-GSGL-750 | 750 | 920 | 1100 | 1040 | 850 | 800 | 830 | 1100 | 660 | 1000 | DN100 | 0.18 |
| AK-GSGL-1000 | 1000 | 1120 | 1320 | 1040 | 995 | 945 | 965 | 1320 | 870 | 1000 | DN200 | 0.18 |
| AK-GSGL-1500 | 1500 | 1150 | 1350 | 1540 | 1045 | 995 | 1015 | 1350 | 900 | 1500 | DN200 | 0.18 |
| AK-GSGL-2000 | 2000 | 1150 | 1350 | 2040 | 1045 | 995 | 1015 | 1350 | 900 | 2000 | DN200 | 0.18 |
Selection Guide
To provide a more suitable pump, we need to understand as much detailed information as possible. You can request the working condition survey form from me. If you are replacing an existing pump, you can provide me with the original product model or nameplate.
